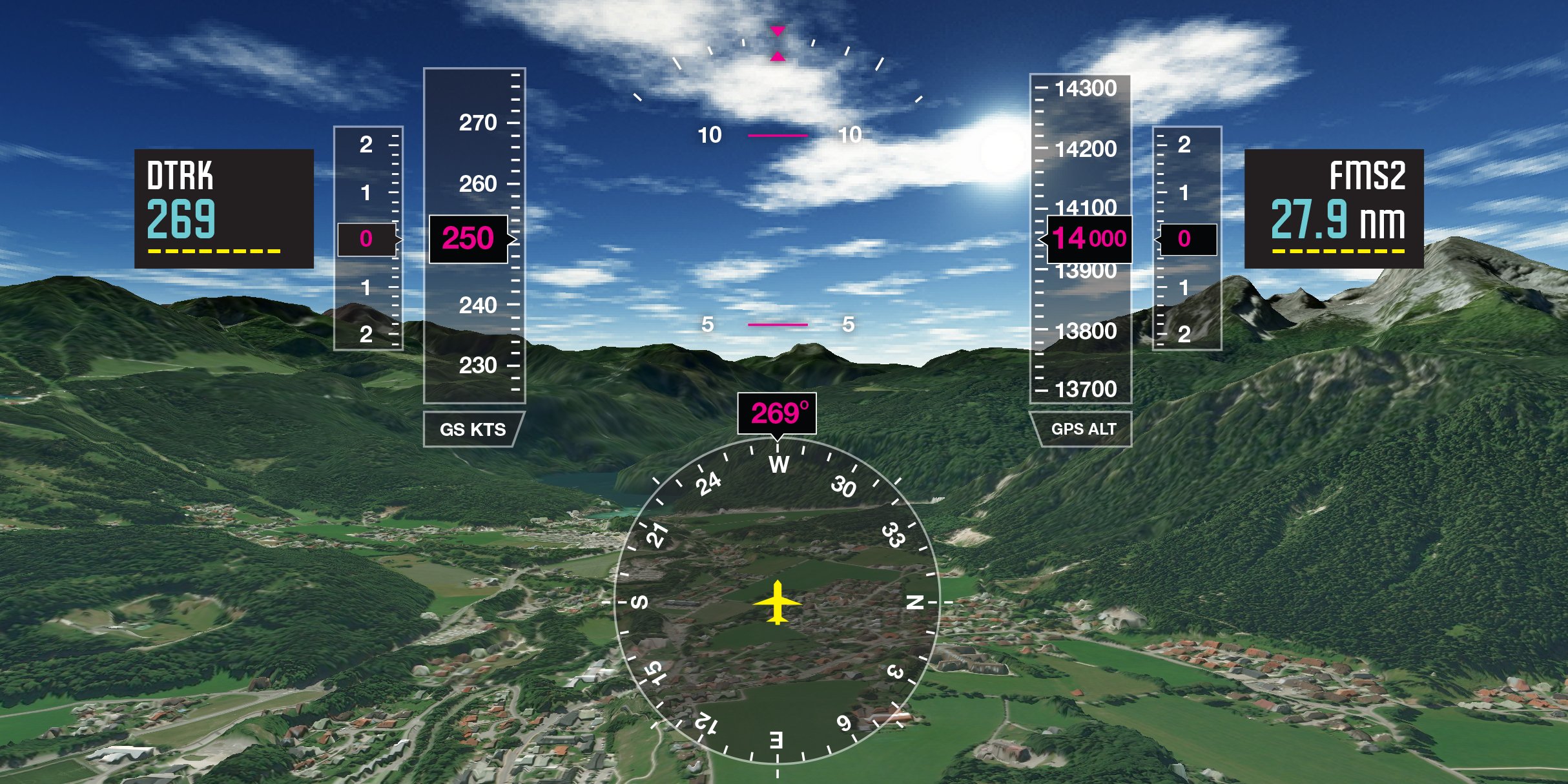

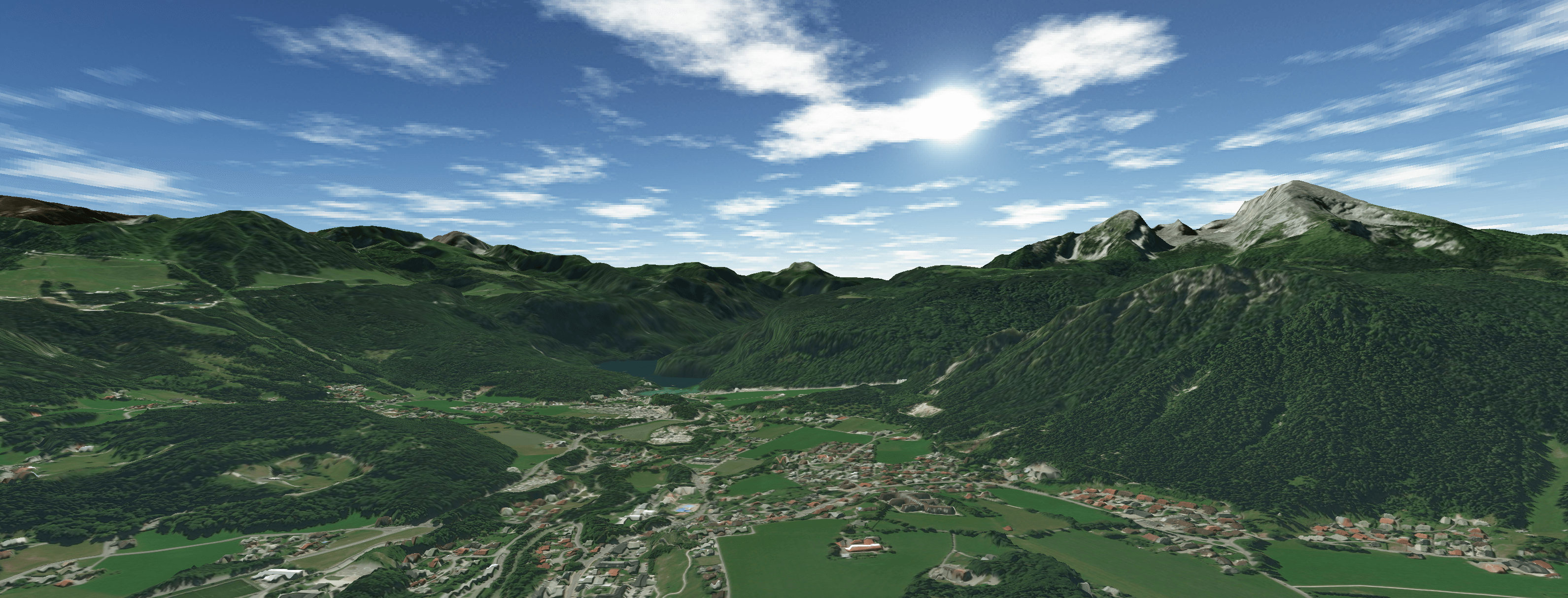

Germany flythrough

Aviation

Enhanced Situational Awareness Based on Highest-
Quality Terrain Data Available

See the Future with Lido/SurfaceData NEXTView

Intermap has teamed with Lufthansa  Systems to bring a new View to aviation. Lido/SurfaceData NEXTView incorporates the highest-quality terrain data available into an integrated system for unprecedented global situational awareness in the cockpit.

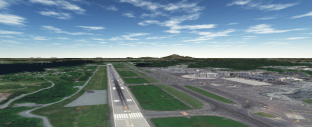

Bergen 3D Aster and Global Aviation Surface Data
ASTER

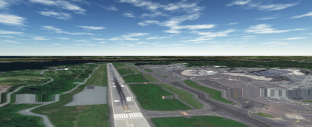

Bergen 3D NML and Global Aviation Surface Data

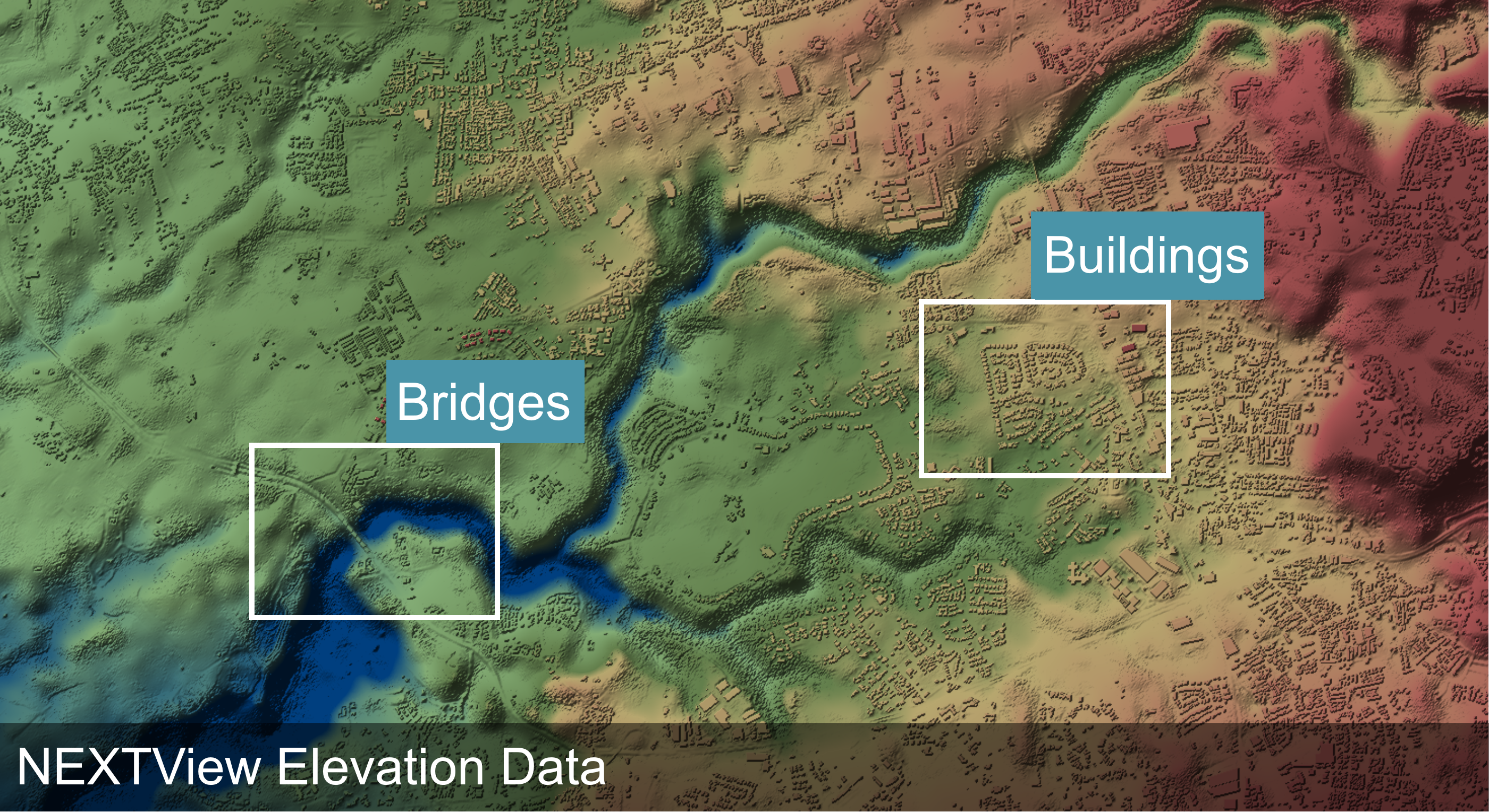

NEXTView featuring NEXTMap® Elevation Data
See the Difference. This visualization of the Bergren airport shows the difference NEXTMap elevation makes. NEXTView’s precision surface detail enhances the pilot experience, while the top simulation using data from the ASTER (Advanced Spaceborne Thermal Emission and Reflection Radiometer) satellite – one of the most common terrain data sources – is unusable for aerodrome operations.

World’s First Global Aviation Surface Data

Worldwide Coverage. Visualize 100% of the Earth’s 150 million square kilometers.

Detailed Surface Data. Seamless 6-meter digital surface modeling of the Earth.

EASA Certified. Planned certification to relevant industry standards and regulation for integration with flight safety systems.

High Vertical Accuracy. Incredible 3-meter vertical accuracy that meets ICAO Annex 15 specifications.

Detailed Obstacles. Plan safely and confidently with billions of obstructions identified around the globe such as buildings, mountain peaks, and trees.

Aerodromes. Includes detailed modeling of aerodromes and runways.

Designed for Aviation Applications

Aviation applications require reliable, up-to-date data where safety is paramount. Lido/SurfaceData NEXTView is specifically designed for aviation applications and systems.

  • Synthetic vision systems (SVS), enhanced and combined vision systems (EVS/CVS)
  • Terrain awareness and ground proximity warning systems (TAWS, EGPWS)
  • Flight planning, procedure design, and performance calculation
  • Charting, maps, navigation, and simulation
  • Emergency landing site location evaluation, drift-down procedure calculation
  • Drone operations, drone planning
Flight Simulator and Aviation Data

Meets/Exceeds Area(s) 1/2 Globally

Lido/SurfaceData NEXTView
Area 1 (Aircraft)
Area 1 (Rotocraft)
Area 2
Area 3
Area 4
Post Spacing
6 m
90 m
30 m
30 m
20 m
9 m
Vertical Accuracy
3 m
30 m
3 m
3 m
0.5 m
1 m
Vertical Resolution
0.001 m
1 m
0.1 m
0.1 m
0.01 m
0.1 m
Horizontal Accuracy
5 m
50 m
5 m
5 m
0.5 m
2.5 m
Confidence Level
90%
90%
90%
90%
90%
90%
Data Classification Integrity Level
Essential (100%)
Routine
Routine
Essential
Essential
Essential
Maintenance Period
Continual
As Required
As Required
As Required
As Required
As Required
